Built 2012
Length 50 m
Cabins 6
Guests 12
ACICO YACHTS
Specifications
General
Naval Architect/Designer: Olivier F. van Meer Design BV, Oosterhavenstraat 39,
NL-1601 KX Enkhuizen
Builder: ACICO Yachts BV, Voorland 12, NL-1601 EZ Enkhuizen
Flag Authority: Cayman Island Shipping Registry (CISR)
Classification Society: American Bureau of Shipping (ABS)

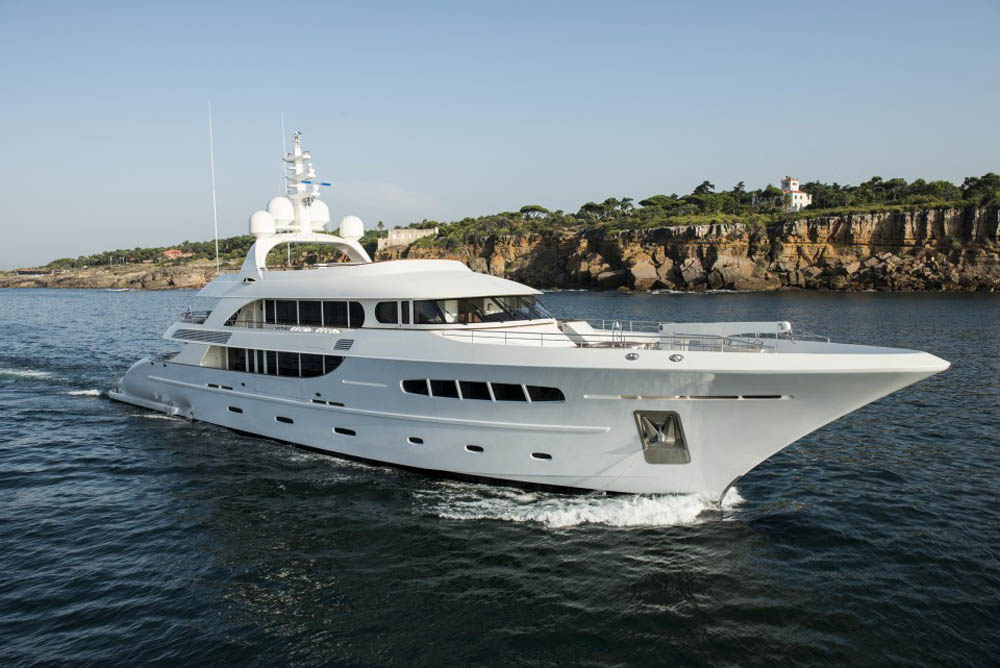

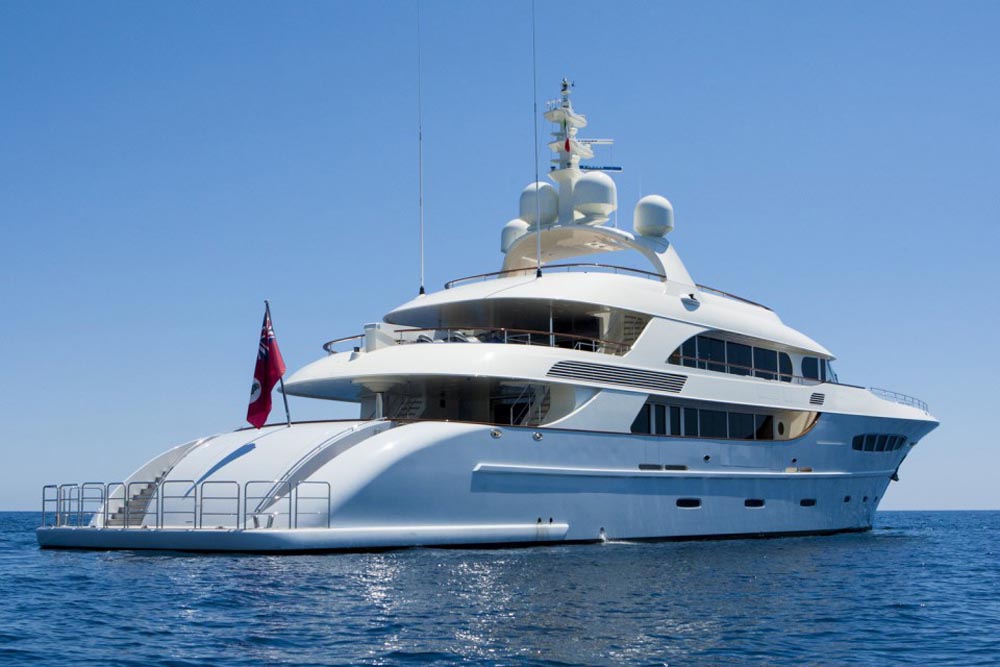

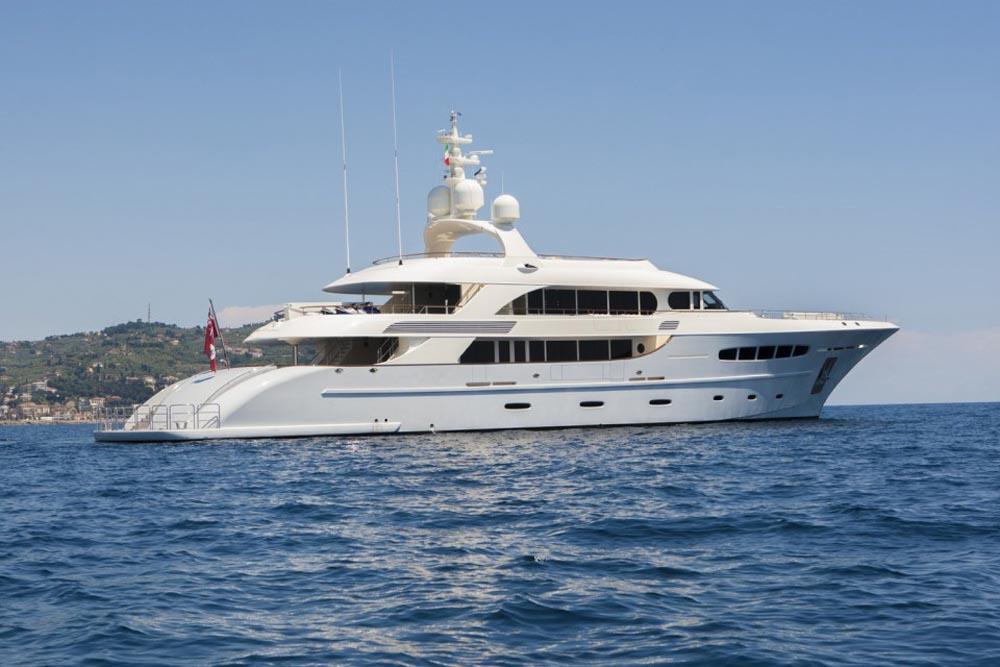

Type of Yacht: 50 metre twin screw, aluminium, semi-displacement oceangoing luxury motor yacht.
ClassificationvGross tonnage: 493 GT
Total propulsion power: 3. 528 kW
Total electrical power: 350 kW
Passengers: maximum 12 persons
Principal Dimensions
Overall length: 50 m
Overall beam: 8. 82 m
Draft: 2. 45 m
Displacement: 384 ton (max. fully loaded)
Propulsion Arrangement
Main engines: twin Caterpillar 3512C-HD, 1764 BkW @ 1800 rpm
Reduction gear: ZF 7640, ratio 3, 625: 1
Propeller shaft: Custom Amartech water lubricated stainless steel propeller shaft system.
Propulsion: twin shaft, 5 blade Veem fixed pro
Naval Architect/Designer: Olivier F. van Meer Design BV, Oosterhavenstraat 39,
NL-1601 KX Enkhuizen
Builder: ACICO Yachts BV, Voorland 12, NL-1601 EZ Enkhuizen
Flag Authority: Cayman Island Shipping Registry (CISR)
Classification Society: American Bureau of Shipping (ABS)
Type of Yacht: 50 metre twin screw, aluminium, semi-displacement oceangoing luxury motor yacht.
ClassificationvGross tonnage: 493 GT
Total propulsion power: 3. 528 kW
Total electrical power: 350 kW
Passengers: maximum 12 persons
Principal Dimensions
Overall length: 50 m
Overall beam: 8. 82 m
Draft: 2. 45 m
Displacement: 384 ton (max. fully loaded)
Propulsion Arrangement
Main engines: twin Caterpillar 3512C-HD, 1764 BkW @ 1800 rpm
Reduction gear: ZF 7640, ratio 3, 625: 1
Propeller shaft: Custom Amartech water lubricated stainless steel propeller shaft system.
Propulsion: twin shaft, 5 blade Veem fixed pro
Accommodation
Interior construction
The following areas are built by List General Contractor GmbH.
· Sky lounge/Owner’s stateroom and bathroom
· Main deck entrance lobby

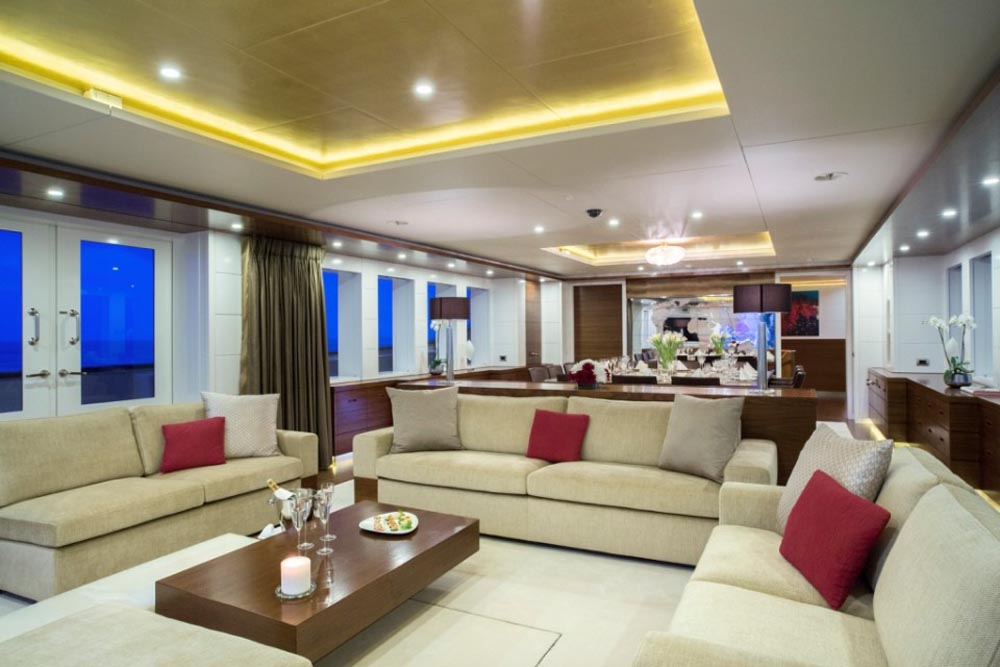

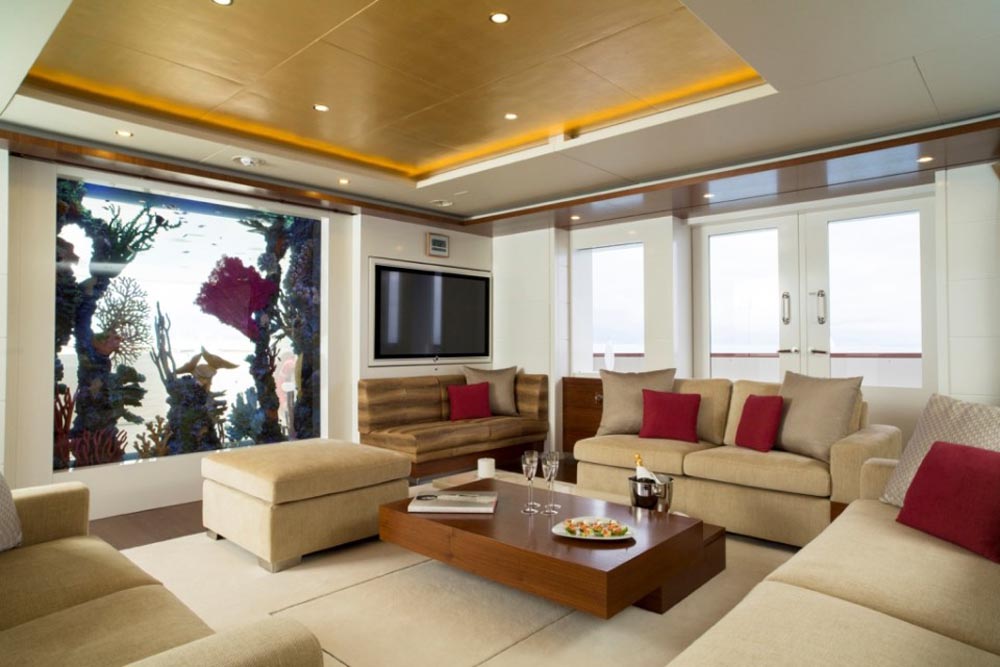

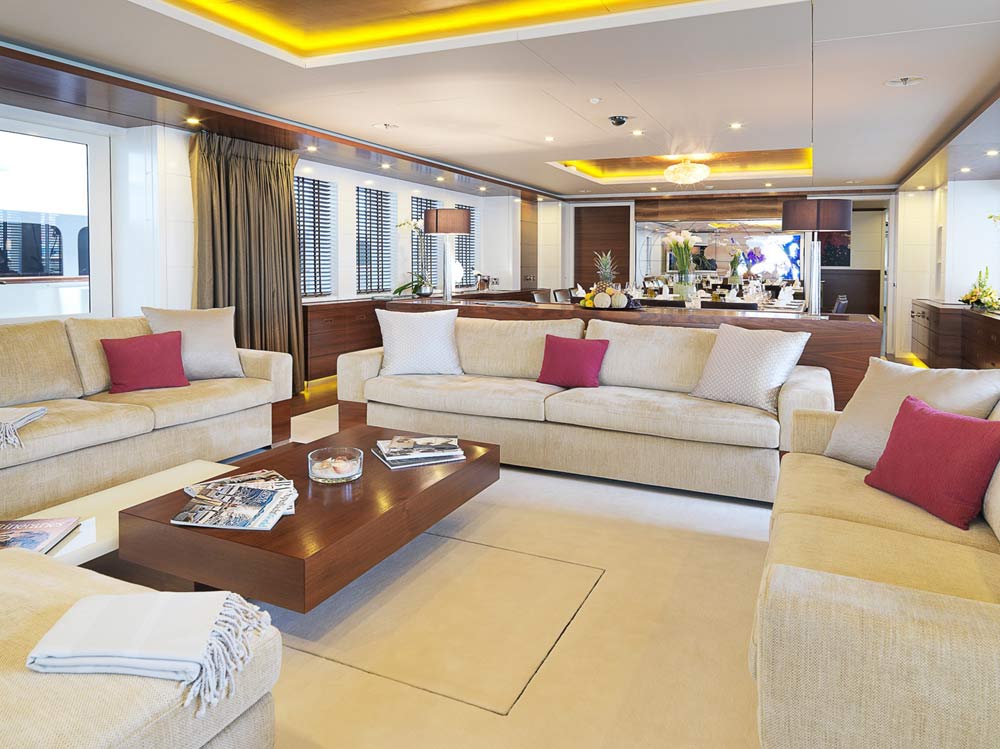

· Salon
· VIP and guest cabins and bath cabins
The following areas are built by the ACICO carpentry department:

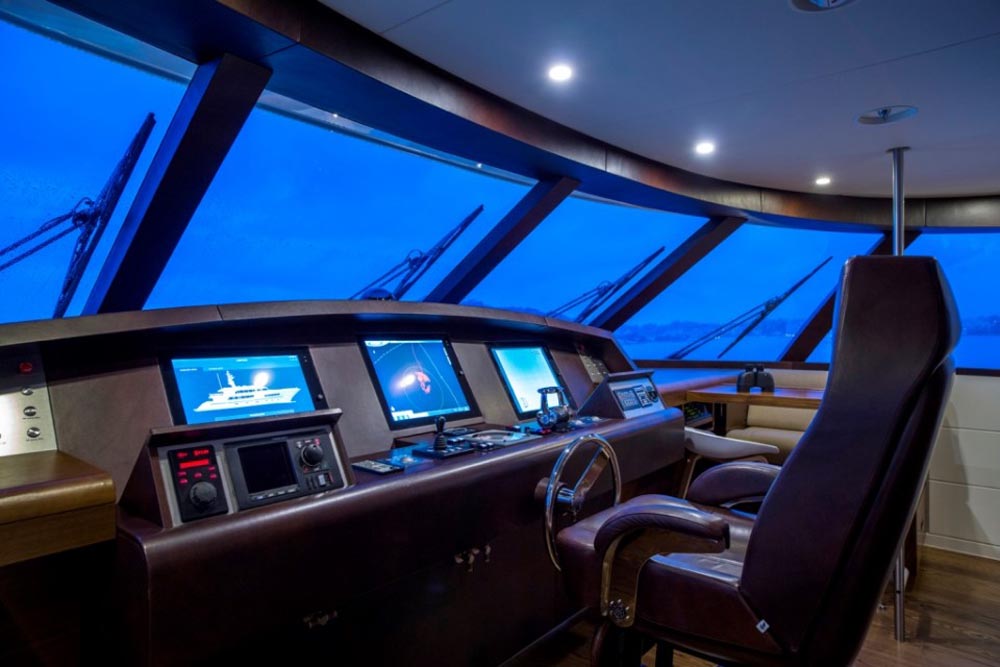

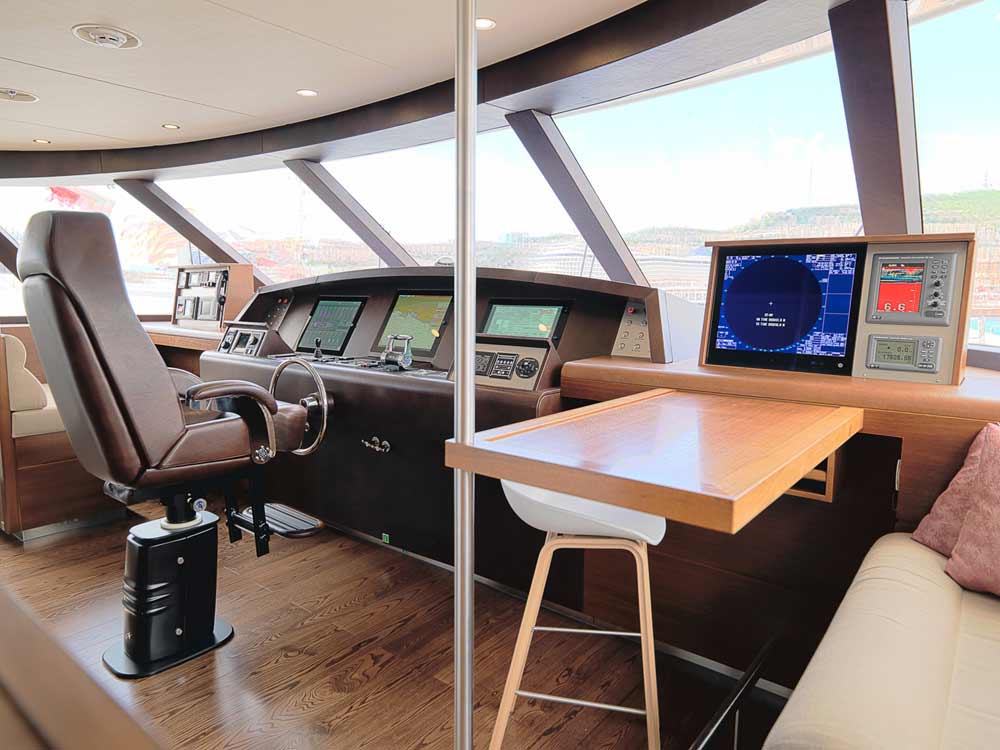

· Wheelhouse
· Captain’s Cabin

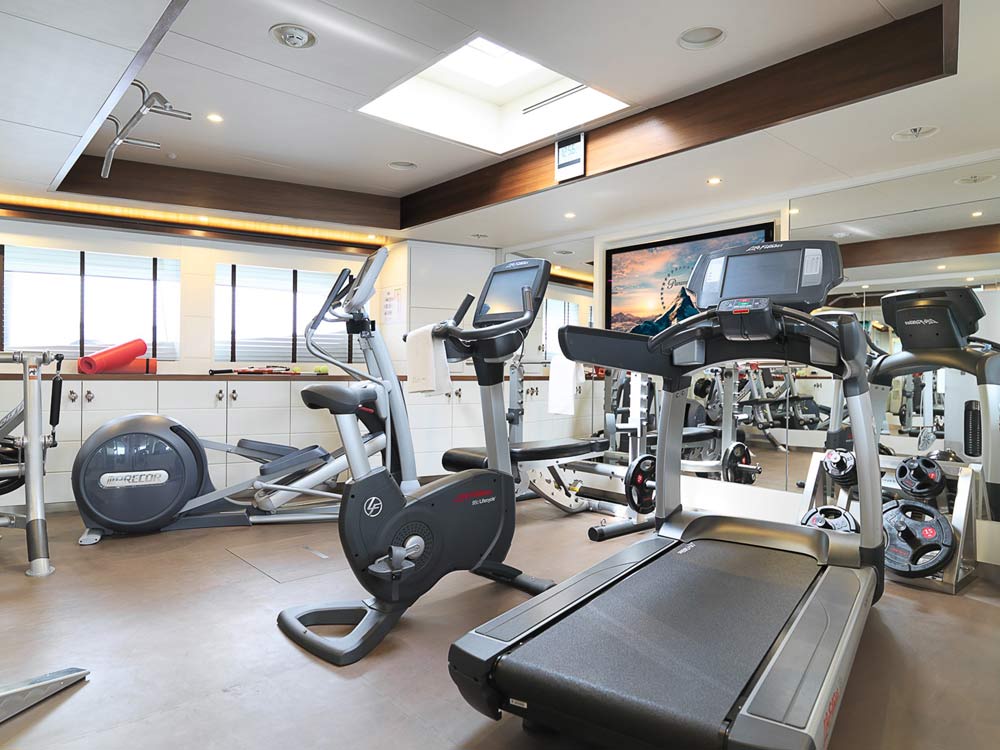

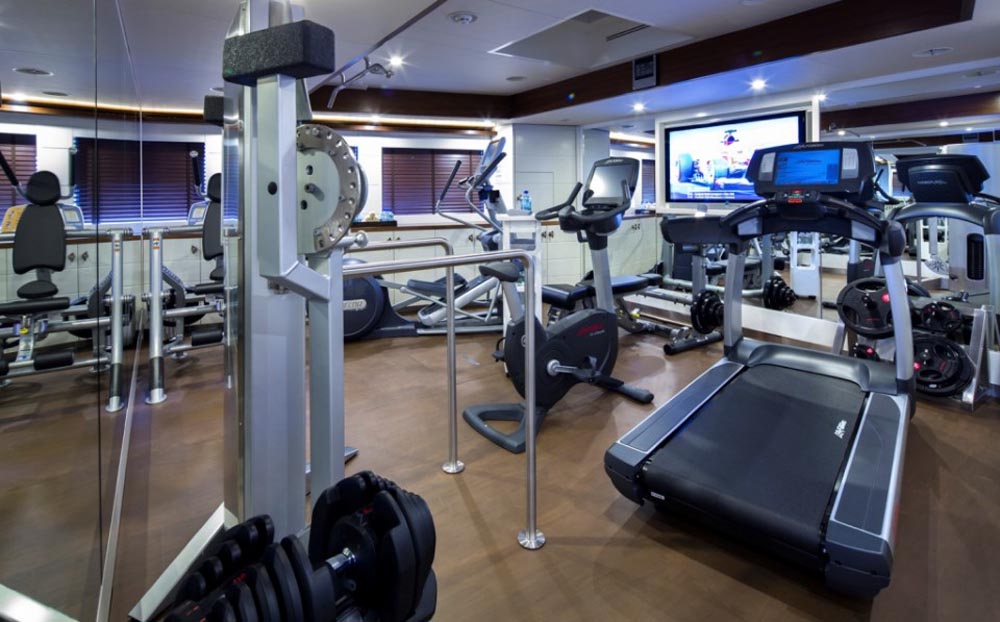

· Gym

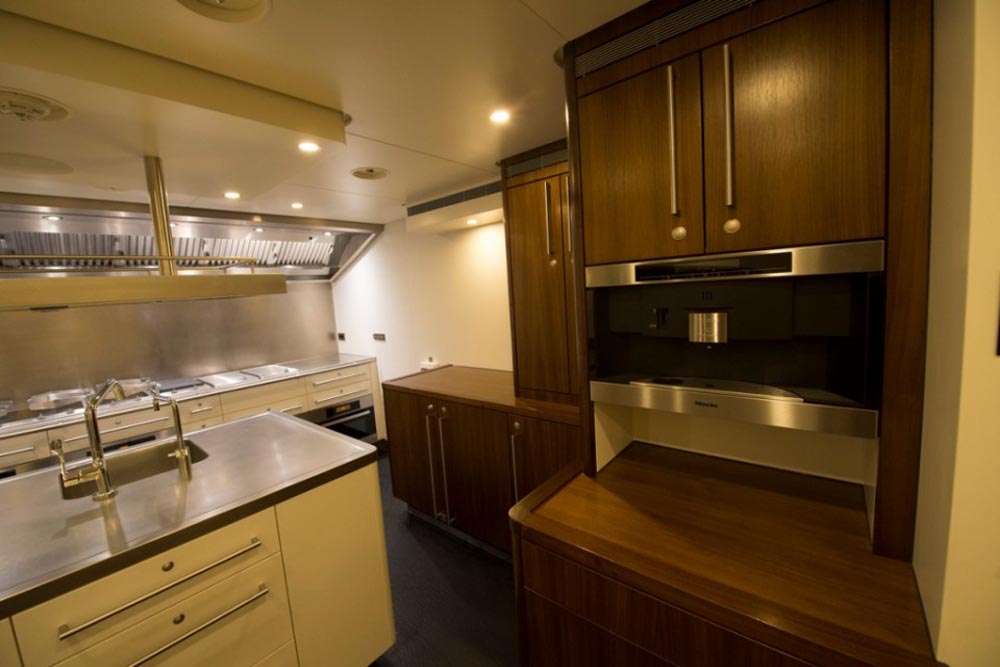

· Galley and Laundry
· Crew accommodation

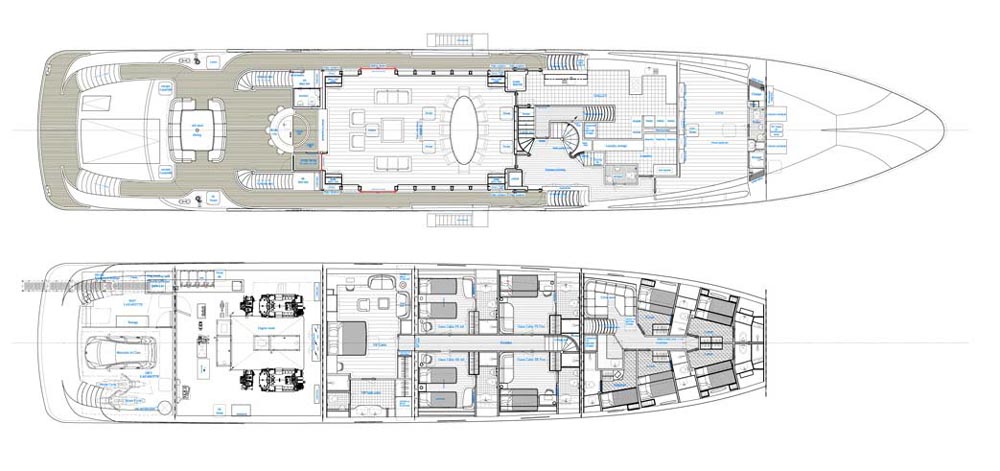

Guest Accommodation

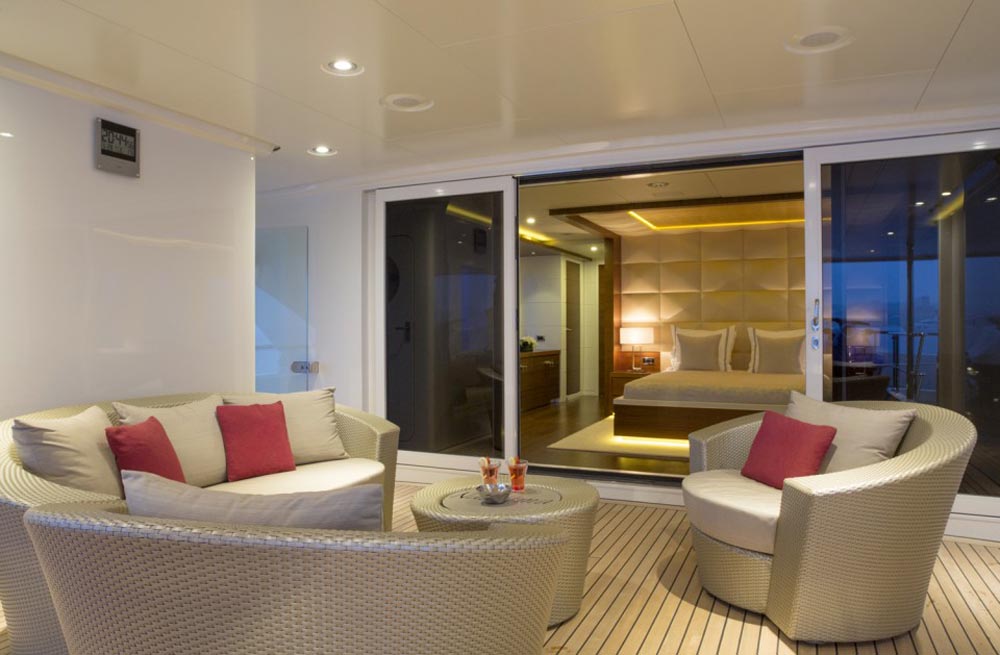

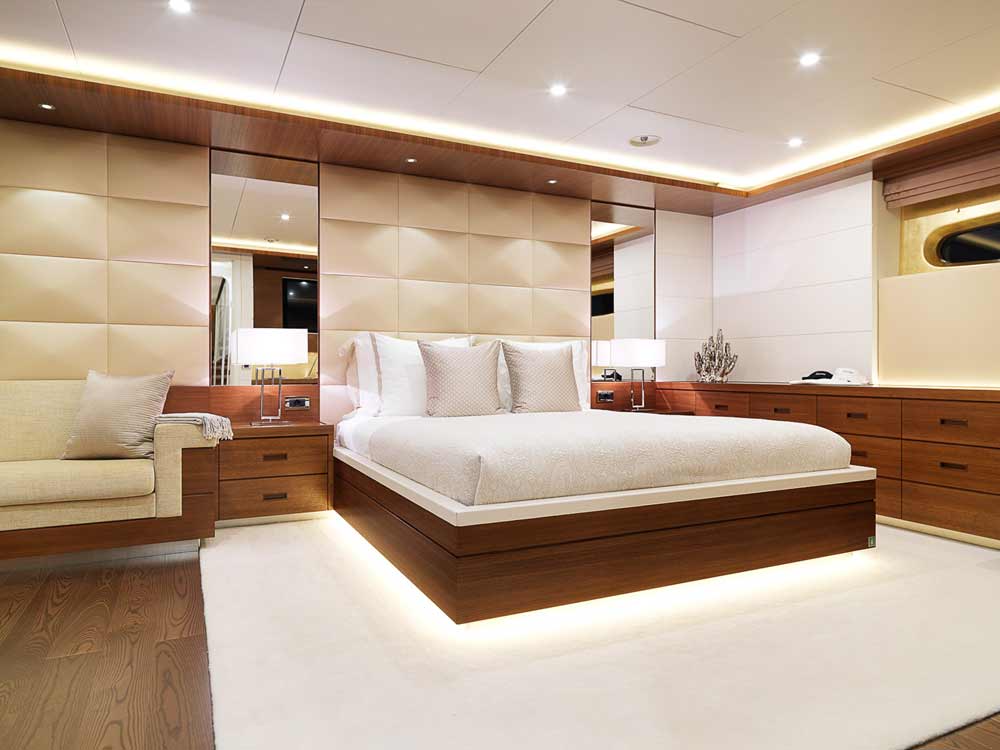

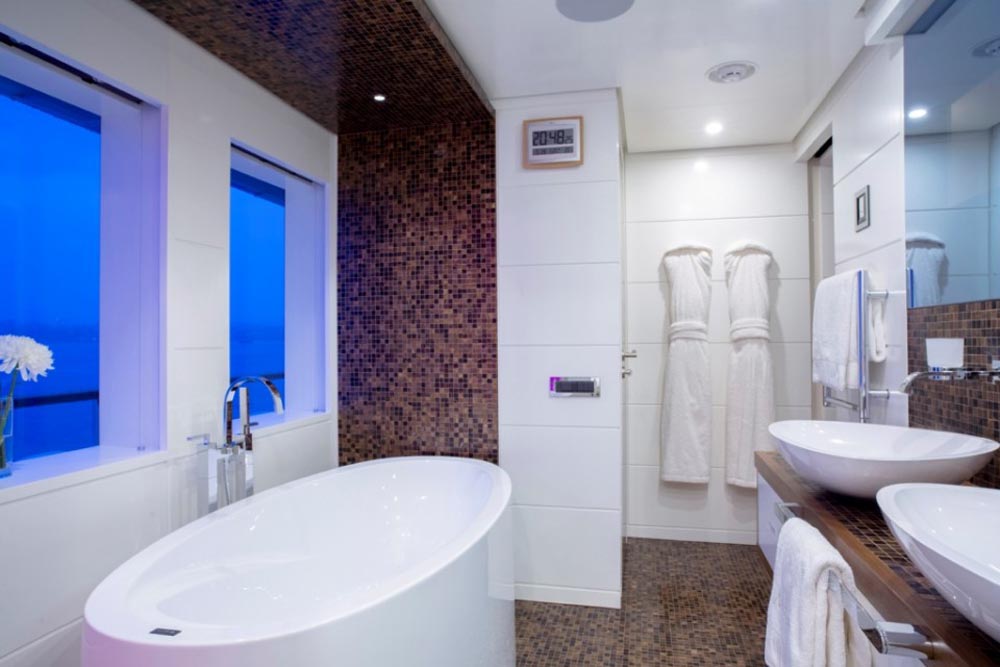

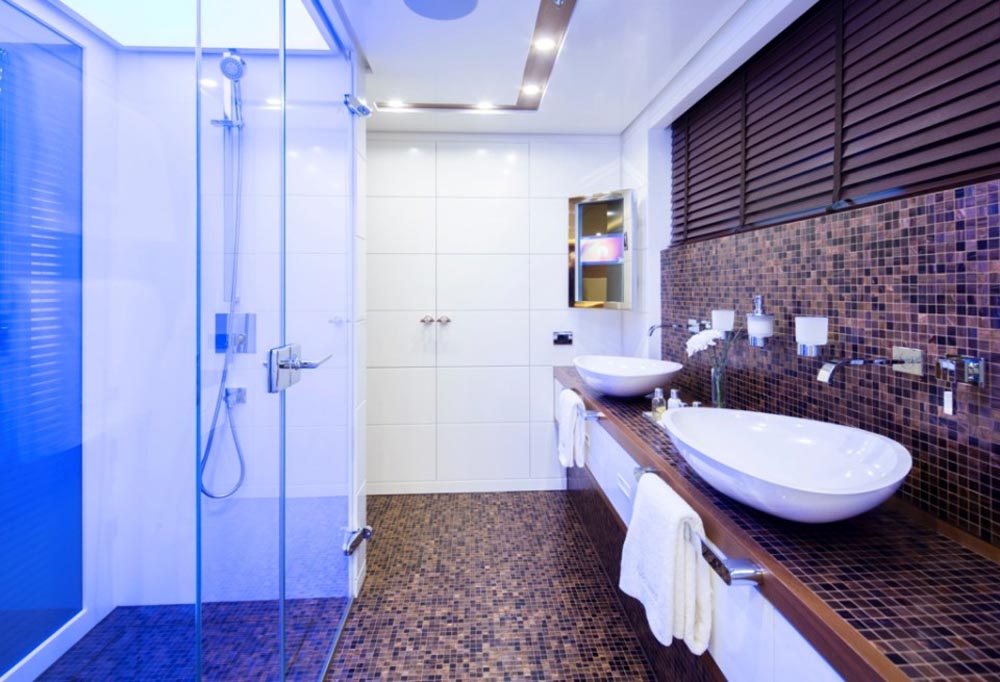

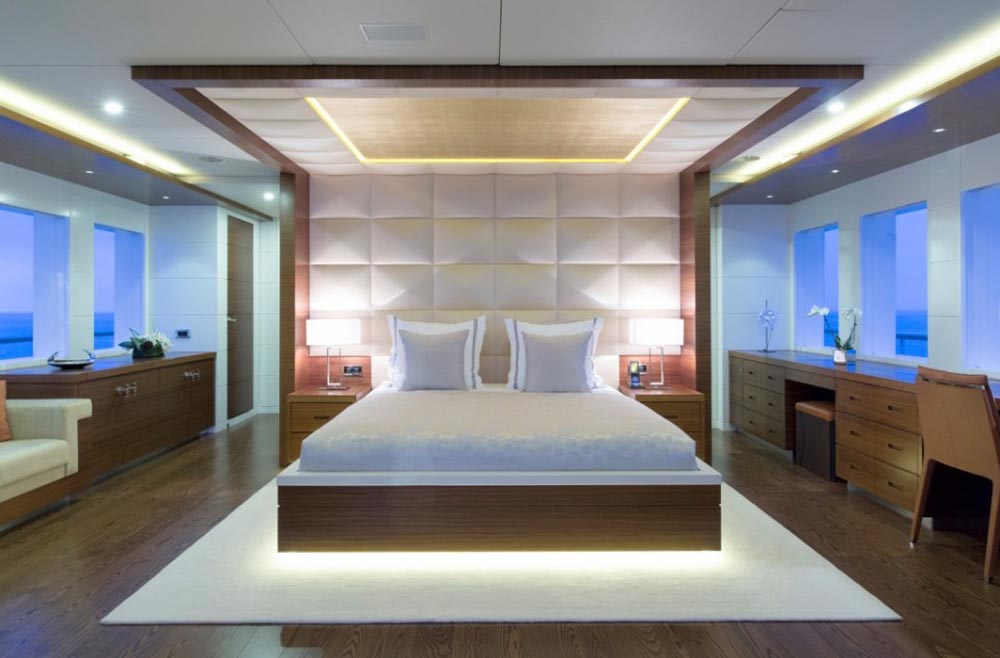

Accommodation for up to 12 guests in 6 staterooms - The materials are luxurious and subtle with a light colour scheme of cream, beige and white framed with natural tones of dark wood. Lavish master suite located on the bridge deck, full-beam with own private and spacious aft terrace. Private lounge and office area, Panoramic views courtesy of the large surrounding windows- large en suite with bath, big separate shower area, double sinks and separate toilet.
Lower deck:

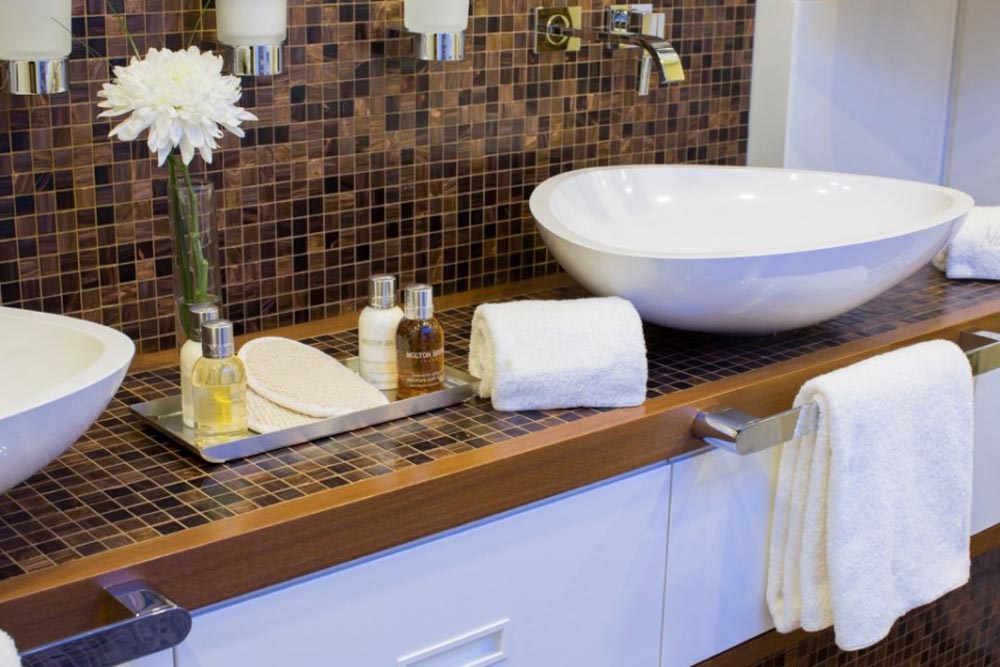

Full width VIP stateroom with lounge area, large wardrobes, luxurious en suite with double sinks a big separate shower area.

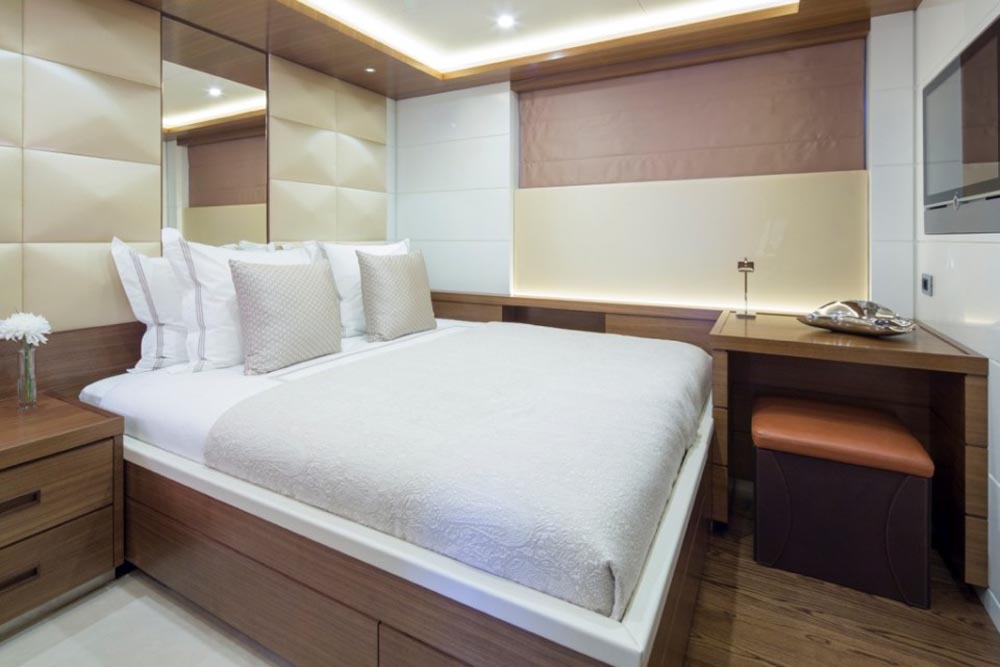

Two x double cabins (these 2 cabins can be converted into twin cabins)

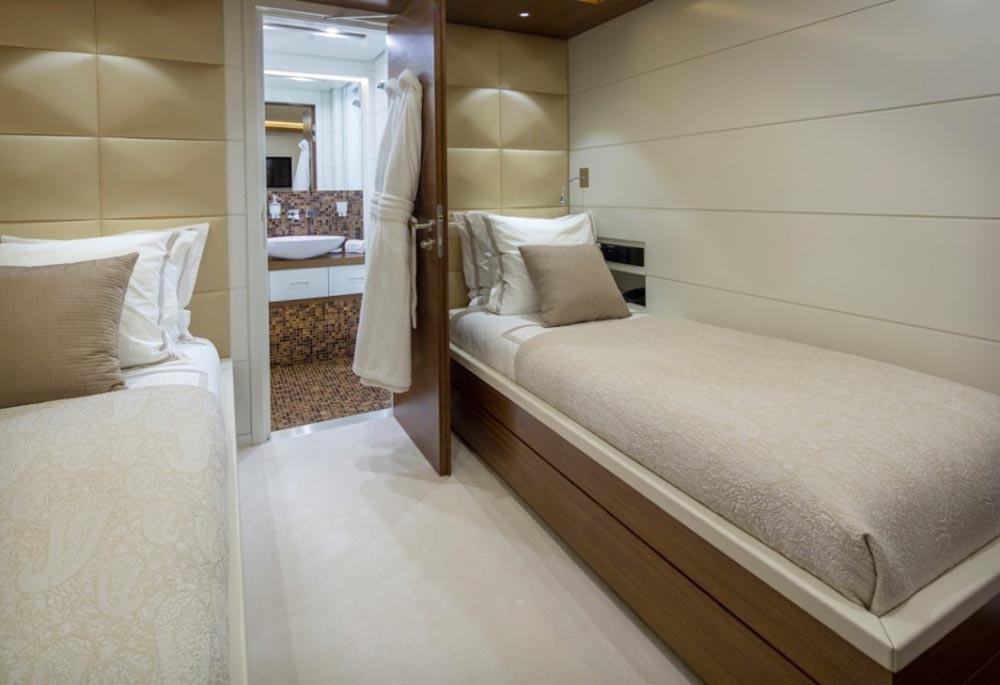

Two x twin cabins

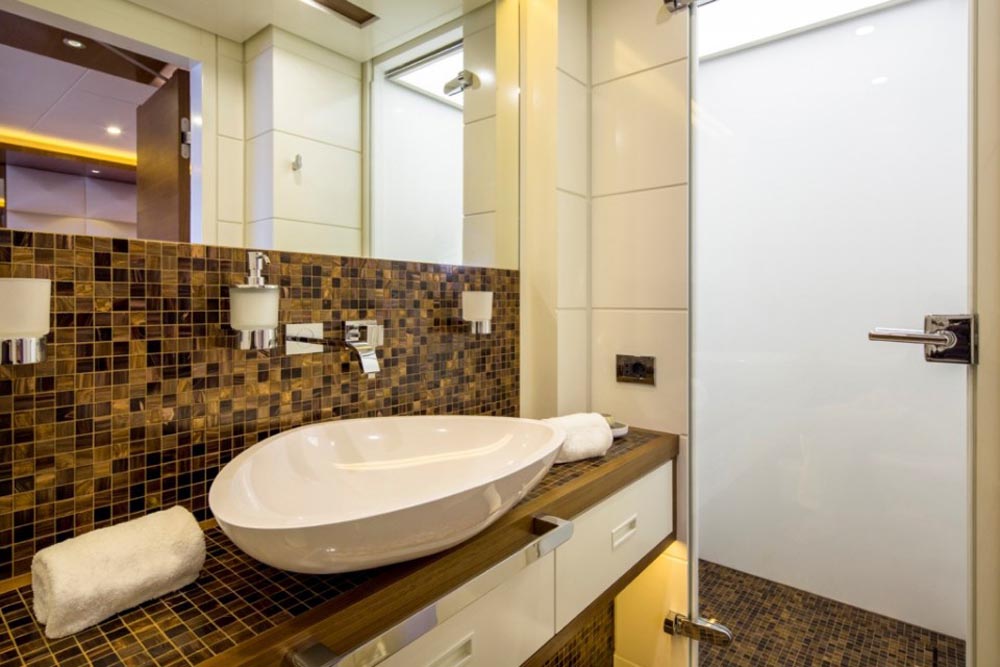

All cabins are en suite with ample amounts of natural light.
The following areas are built by List General Contractor GmbH.
· Sky lounge/Owner’s stateroom and bathroom
· Main deck entrance lobby
· Salon
· VIP and guest cabins and bath cabins
The following areas are built by the ACICO carpentry department:
· Wheelhouse
· Captain’s Cabin
· Gym
· Galley and Laundry
· Crew accommodation
Guest Accommodation
Accommodation for up to 12 guests in 6 staterooms - The materials are luxurious and subtle with a light colour scheme of cream, beige and white framed with natural tones of dark wood. Lavish master suite located on the bridge deck, full-beam with own private and spacious aft terrace. Private lounge and office area, Panoramic views courtesy of the large surrounding windows- large en suite with bath, big separate shower area, double sinks and separate toilet.
Lower deck:
Full width VIP stateroom with lounge area, large wardrobes, luxurious en suite with double sinks a big separate shower area.
Two x double cabins (these 2 cabins can be converted into twin cabins)
Two x twin cabins
All cabins are en suite with ample amounts of natural light.
Equipment
Generators
The vessel is equipped with 3 Caterpillar generator sets, capacity 1x 100 kW, 2x 125 kW. The generators are equipped with synchronisers to run parallel.
Electrical system
The electrical installation is based on the specified consumers and systems and is designed according the Class Rules. The main generators run in a parallel mode, automatically operated. The electrical engineers from the electrical sub-contractor and the engineers from the yard have detailed the final design of the installation and have made a load analysis. The electrical installation consists of the following:
· 230/400 VAC, 3 phase 50 Hz, 4 wire grounded neutral system
· 24 DC System for service, start, radio and emergency system
· Distribution, control and alarm boxes
· Alarm & operation system
Navigation lights
Vessel is equipped with navigation lights according to class rules.
On the aft ship 6 and on the bulb 2 underwater LED lights are built in.
The vessel is equipped with 3 Caterpillar generator sets, capacity 1x 100 kW, 2x 125 kW. The generators are equipped with synchronisers to run parallel.
Electrical system
The electrical installation is based on the specified consumers and systems and is designed according the Class Rules. The main generators run in a parallel mode, automatically operated. The electrical engineers from the electrical sub-contractor and the engineers from the yard have detailed the final design of the installation and have made a load analysis. The electrical installation consists of the following:
· 230/400 VAC, 3 phase 50 Hz, 4 wire grounded neutral system
· 24 DC System for service, start, radio and emergency system
· Distribution, control and alarm boxes
· Alarm & operation system
Navigation lights
Vessel is equipped with navigation lights according to class rules.
On the aft ship 6 and on the bulb 2 underwater LED lights are built in.
